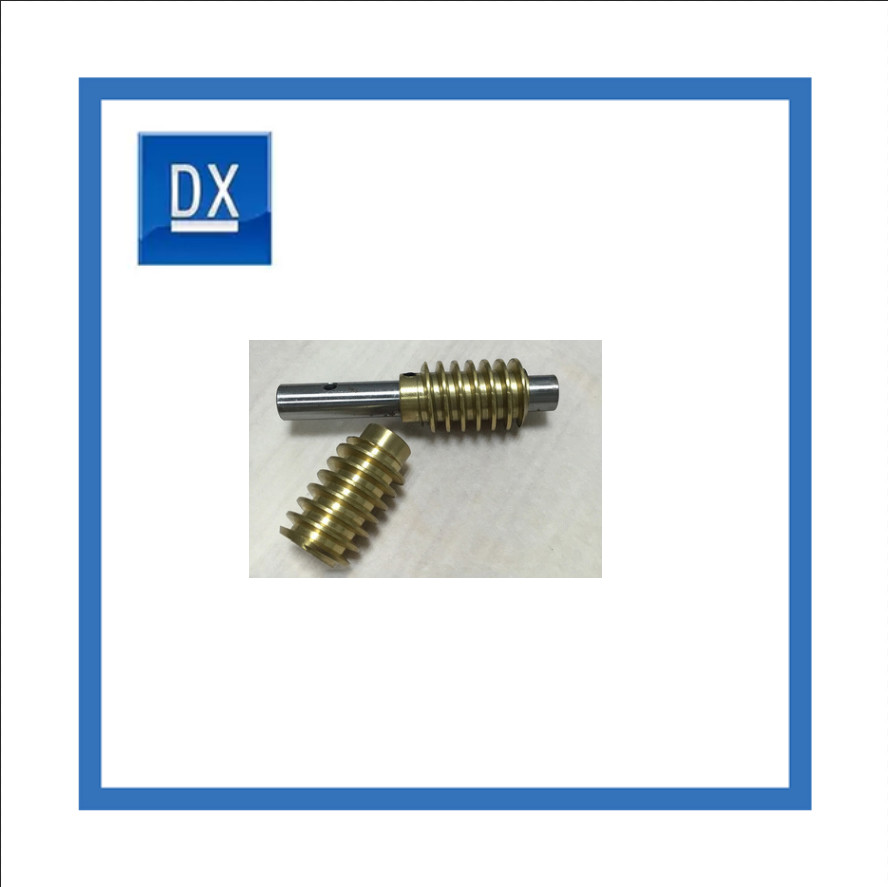

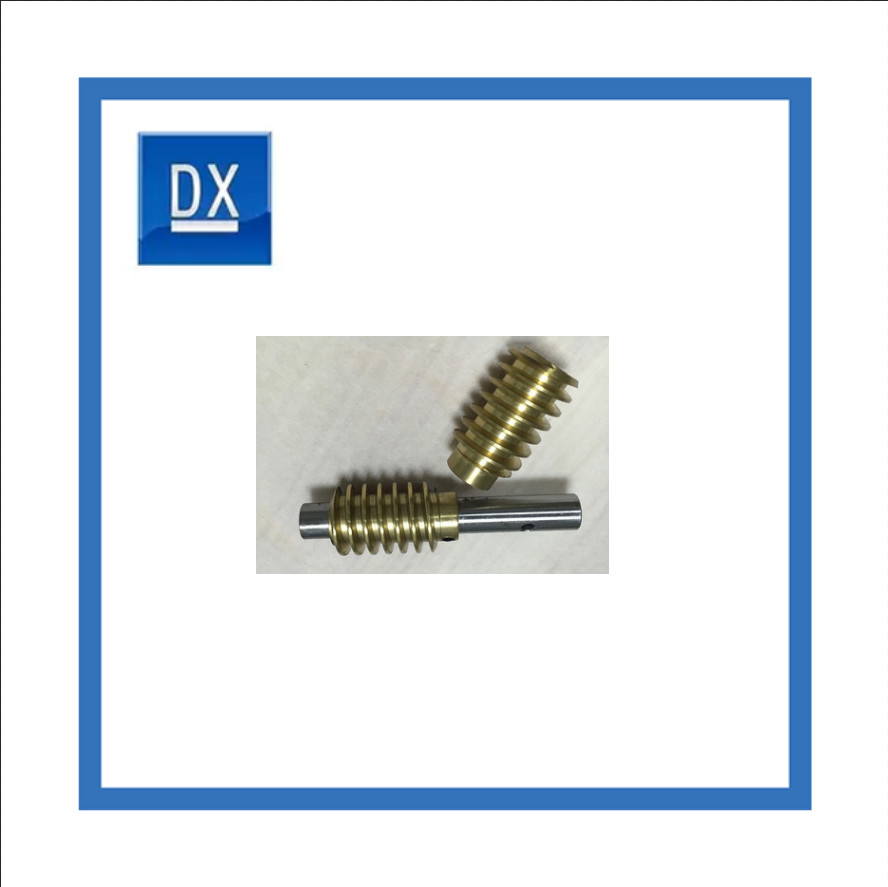

Copper Automatic massager worm diameter 22mm large modulus precision worm.
Description
Worm drive refers to a worm-based deceleration drive. When the reverse stroke is not self-locking, the worm gear can also be used as the primary action for speed-increasing transmission. The transmission power should generally be below 50kW (the maximum can reach about 1000kW), and the relative sliding speed between the tooth surfaces should be below 15m/s (up to 35m/s).
The worm drive is composed of a worm and a worm wheel. Generally, the worm is the driving part. Worms and threads are divided into right-handed and left-handed, respectively called right-handed worm and left-handed worm.
The tooth profile of the end face of the Archimedes worm is an Archimedes spiral, and the tooth profile of the axial face is a straight line. Archimedes worms can be processed on a lathe with a trapezoidal turning tool, so it is simple to manufacture, but difficult to grind, so the accuracy is not high. In the Archimedes cylindrical worm drive, the angle between the contact line of the worm and the worm gear tooth surface and the relative sliding speed is small, and it is not easy to form a lubricating oil film, so the bearing capacity is low.
Transmission parts include gears, axles, crankshafts, shafts, connecting rods, belts and chains, pulleys, etc. What factors are related to the angle error of the transmission part?
1. It is related to the processing accuracy of each transmission part, including flatness, straightness, verticality, runout, etc.;
2. It is related to the initial installation position of each transmission part;
3. It is related to the material rigidity of each transmission part, if it is a flexible material It is obvious that there is a deformation error in the transmission;
4. It is related to the number of transmission parts. The more the number of components of the transmission part, the greater the influence on the angle error; 5. It is related to the temperature factor, which is related to the first The three are somewhat related and belong to the deformation caused by thermal expansion and contraction that affects the angle error.
| Type | Transmission parts |
| Material | Copper |
| Modulus | 1.5 |
| Diameter | 22mm |
| Pressure angle | 20 |
| Head number | 1 |
| Inspection machine | Digital Height Gauge, caliper, Coordinate measuring machine, projection machine, roughness tester, hardness tester and so on |
| Feature | High precision,high wear resistance |
| Package | AS yr requirements |
| Certification | ISO9001:2008,SGS, ROHS |
| Processing equipment | Gear milling machine, grinder, planetary high-speed polishing machine, vertical broaching machine, instrument lathe, bench drill, punching,etc. |
