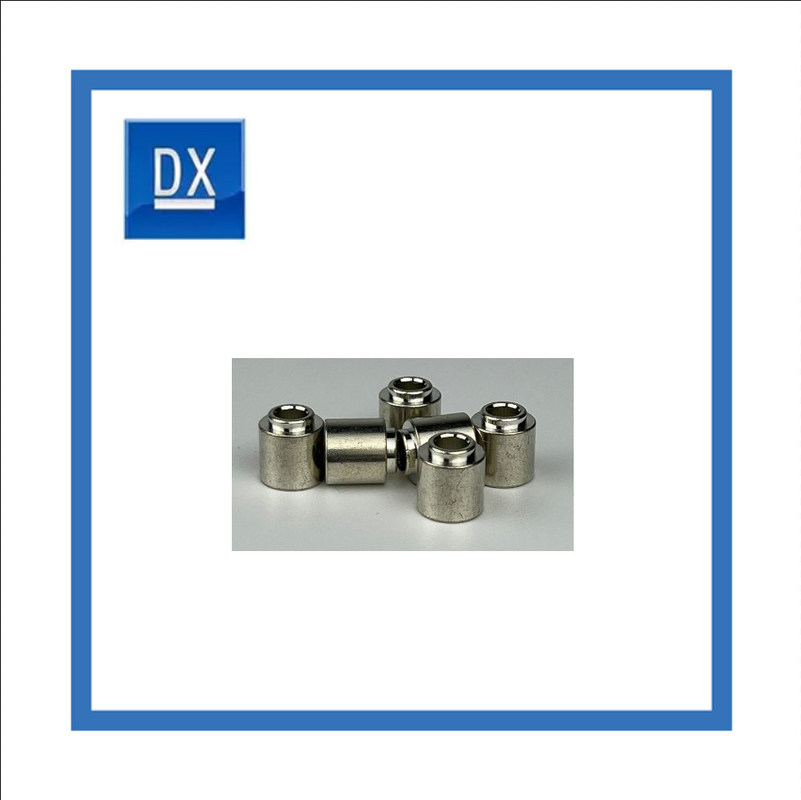

M4 patch nut Circuit board welded copper column PCB motherboard tinned surface paste nut

M4 patch nut Circuit board welded copper column PCB motherboard tinned surface paste nut

Description

SMT patch nuts are a type of threaded fastener that is designed to be installed on the surface of a printed circuit board (PCB). The nuts are constructed using a metal material, typically brass, and feature a small flange at the bottom to grip the PCB. The threaded component of the nut is located at the top, which allows for a screw or bolt to be tightly fastened onto the surface of the board.

These nuts are specifically designed for use in surface mount technology (SMT) applications. This means that they are intended to be soldered directly onto the surface of the PCB, rather than being attached using screws or other mechanical fasteners. This allows for a more secure and space-saving connection, particularly in applications where space is at a premium.

SMT patch nuts are available in a range of sizes and thread types, allowing them to be used in a wide variety of applications. They are commonly found in electronics applications such as mobile phones, laptops, and other consumer and industrial products.

One of the main benefits of SMT patch nuts is that they provide a strong and reliable connection to the PCB surface. The nut's flange ensures that it stays firmly in place during soldering, and the threaded component allows for a secure and stable connection when a screw or bolt is attached. Additionally, their small form factor makes them ideal for use in applications where space is at a premium.

Overall, SMT patch nuts are an essential component in many electronics applications. Their reliability, durability, and compact design make them an ideal choice for SMT installations.

Finish

Brass tinning, also known as brass plating, is the process of depositing a thin layer of tin onto a brass surface. This process is commonly used to improve the appearance and durability of brass products. The tin layer also provides additional protection against corrosion and oxidation.

Brass tinning involves several steps, including cleaning the brass surface, preparing the tin-plating solution, and electroplating the brass with tin.

First, the surface of the brass is cleaned thoroughly to remove any dirt, grease, or other contaminants that may interfere with the plating process. This is typically done with a combination of solvents and mechanical cleaning techniques, such as sanding or polishing.

Next, the tin-plating solution is prepared. This usually involves dissolving tin salts, such as stannous sulfate, in water, along with other chemicals that help regulate the plating process. The solution is typically heated to a specific temperature before use.

The brass object is then suspended in the tin-plating solution and an electric current is applied. The current causes tin ions to be attracted to the surface of the brass, where they combine with the brass to create a thin layer of tin.

The thickness of the tin layer can be controlled by adjusting the duration of the plating process and the strength of the electric current. Once the desired thickness is reached, the brass object is removed from the solution and rinsed with water to remove any remaining plating solution.

Finally, the tin-plated brass is polished to a smooth finish to enhance its appearance and improve corrosion resistance.

Brass tinning is commonly used in applications where brass parts are exposed to harsh environments, such as marine environments or chemical processing plants. It is also used in decorative applications, such as brass door handles or brass jewelry.

Drawing:

Factory Display

Package picture display

Heat Treatment Room display

Inspection Equipment
