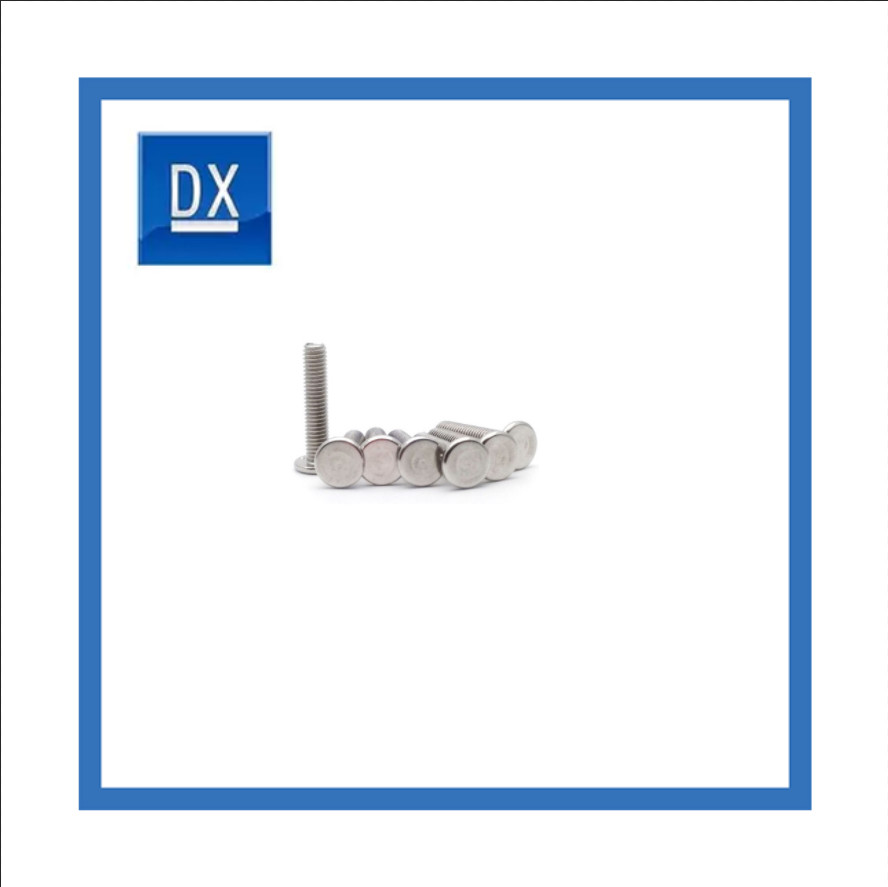

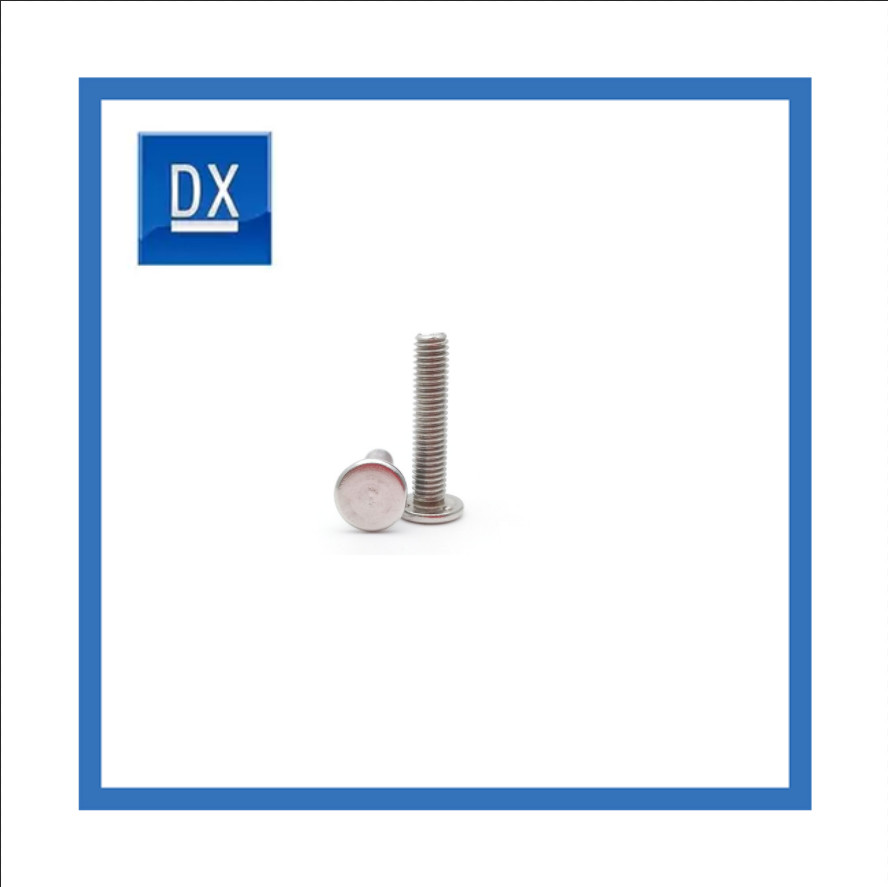

A2-70 grade Stainless steel flat head spot weld screw.
Description
Welding screw is also called energy storage screw, electric bolt welding stud, or planting welding nail, etc.
Welding screw is used in a small range, which is only used in the sheet metal industry and the factory producing the case.
Although the use of welding screw and riveting screw is the same, the use principle is quite different.
Riveting screw is fixed by its own locking embossed teeth, while welding screw is a small spot on the head of the screw.
Spot welding technology is used to weld the screw on the sheet metal to form an external thread, so it is called welding screw.
Although the welding screws are strong and not easy to loosen, some things need to be paid attention to in the process of use, so that the welding screws can be connected and used. Welding is to make two separate parts into a whole, melt the metal at high temperature and mix it together and cool it down. The alloy will be added in the middle. The internal force is the effect of molecular force, which is slightly larger than the general matrix.
The precautions when using welding screws are as follows:
1. The shielding gas is argon with a purity of 99.99%. When the welding current is 50-150A, the argon flow is 8-10L/min, when the current is 150-250A, the argon flow is 12-15L/min.
2. The protruding length of the tungsten electrode from the gas nozzle is preferably 4-5mm. It is 2-3mm in places with poor shielding properties such as fillet welding, and 5-6mm in places with deep grooves. The distance from the nozzle to the work is generally not More than 15mm.
3. The power supply with vertical external characteristics is adopted, and the positive polarity is adopted for direct current (the welding wire is connected to the negative electrode).
| Product name | A2-70 grade Stainless steel flat head spot weld screw |
| Material | Stainless Steel |
| Color | Nature color |
| Surface Finish | Plain |
| Thread type | External thread |
| Class | Grade 4.8 |
| Head type | Flat head |
| Delivery Time | 10-25days |
| Service | OEM /ODM |
| Package | PP bag+Carton |
| Certification | ISO9001 |
| Usage | Industry |
