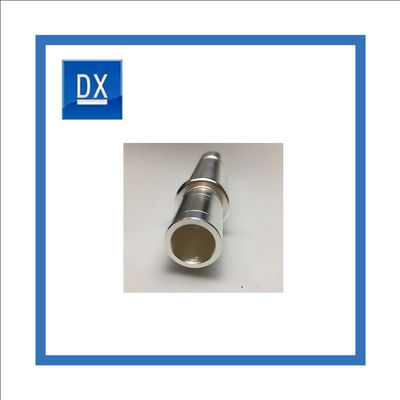

T2 Copper Silver Plating High Precision Machined Parts For High Voltage

T2 Copper Silver Plating High Precision Machined Parts For High Voltage

  • High Light

    ISO9001 High Precision Machined Parts

    ,

    T2Copper High Precision Machined Parts

    ,

    silver plating

  • Material
    T2 Copper
  • Surface Finish
    Silver Plating
  • Linear
    ±0.5
  • Angle
    ±0.5°
  • Process
    Precision Machining
  • Material Standard
    ASTM
  • Custom
    Yes
  • Certification
    ISO9001
  • Place of Origin
    China
  • Minimum Order Quantity
    200pcs
  • Price
    USD
  • Packaging Details
    Custom packaging
  • Delivery Time
    45days
  • Payment Terms
    T/T

T2 Copper Silver Plating High Precision Machined Parts For High Voltage

T2 Copper silver plating high precision machined parts for High voltage.

Description

This product has precision, and it is made by machining technology. The equipment also adopts machining equipment with high precision.


CNC MachiningDescription
Product nameT2 Copper silver plating hig precision machinined parts for High voltage
MaterialT2 copper
ProcessPrecision machining
Linear±0.5
Angle±0.5°
Surface finishSliver plate
Material standardASTM
Service availableOEM /ODM/Customized/Design
Quality control0 defects, 100% inspection before packing
ApplicationMilitary use
FeaturesHigh quality,High precision


Silver Plate process
1. Degreasing
1. High temperature degreasing: normal temperature degreasing agent 5% + sodium hydroxide 5% / L, temperature 80 ℃ - 100 ℃.
2. Barrel deoiling: normal temperature deoiling agent 5% + sodium hydroxide 5% / 1 Temperature.
3. Electrolytic deoiling: electrolytic deoiling powder 5%, current density 2-5A / DM2, temperature 60 ℃ - 70 ℃.

2. Polishing
The purpose of general etching and bright etching is to remove the oxide layer on the surface of parts and the surface stains after oil removal. Ingredients: nitric acid, hydrochloric acid, water (20 ℃ - 40 ℃). 2. The purpose of bright etching is to make the surface of parts bright and fine. Ingredients: sulfuric acid, hydrochloric acid, sodium nitrate, water, brightener (20 ℃ - 35 ℃).

3. Passivation
Purpose: To remove the residue on the surface of parts after polishing.

4. Acid activated
To remove the passive film, increase the surface activity of the parts and the adhesion of the coating composition: hydrochloric acid, water or sulfuric acid, water time: 3min-5min.

5. The purpose of pre silver plating
To make the surface of parts generate copper and silver complexes, increase the adhesion between parts and coating, and increase the anti discoloration ability. Ingredients: silver cyanide (1g1), potassium cyanide (70g), pure water, current density: 0.3-0.5a/d.

6. Silver protection purpose
To form a very thin protective film of silver complex with the coating to improve the anti discoloration and anti-oxidation ability of the coating. Ingredients: Silver protector (1096), temperature (60 ℃± 5 ℃) and time: 1min.

7. Purpose of water washing
To prevent solvent pollution between processes.

Factory Display

T2 Copper Silver Plating High Precision Machined Parts For High Voltage 0T2 Copper Silver Plating High Precision Machined Parts For High Voltage 1

Test Equipment

T2 Copper Silver Plating High Precision Machined Parts For High Voltage 2

T2 Copper Silver Plating High Precision Machined Parts For High Voltage 3

T2 Copper Silver Plating High Precision Machined Parts For High Voltage 4

Q1:What service you can provide?

A:We provide OEM and ODM services. At the same time, we optimize according to the requirements of technology and cost, so that
customers can get more cost-effective products.

Q2: What's kinds of information you need for a quote?
A: In order to quote for you earlier, please provide us the following information together with your inquiry.
1. Detailed drawings (STEP, CAD, SOLID Works, PROE, DXF and PDF.)
2. Material requirement (SUS, SPCC, SECC, SGCC, Copper, AL, ETC.)
3. Surface treatment (powder coating, sand blasting, planting, polishing, oxidization, brushing, etc.)
4. Quantity (per order/ per month/ annual)
5. Any special demands or requirements, such as packing, labels, delivery, etc.

Q3: What shall we do if we do not have drawings?
A: Please send your sample to our factory, then we can copy or provide you better solutions. Please send us pictures or drafts with dimensions (Thickness, Length, Height, Width), CAD or 3D file will be made for you if placed order.
