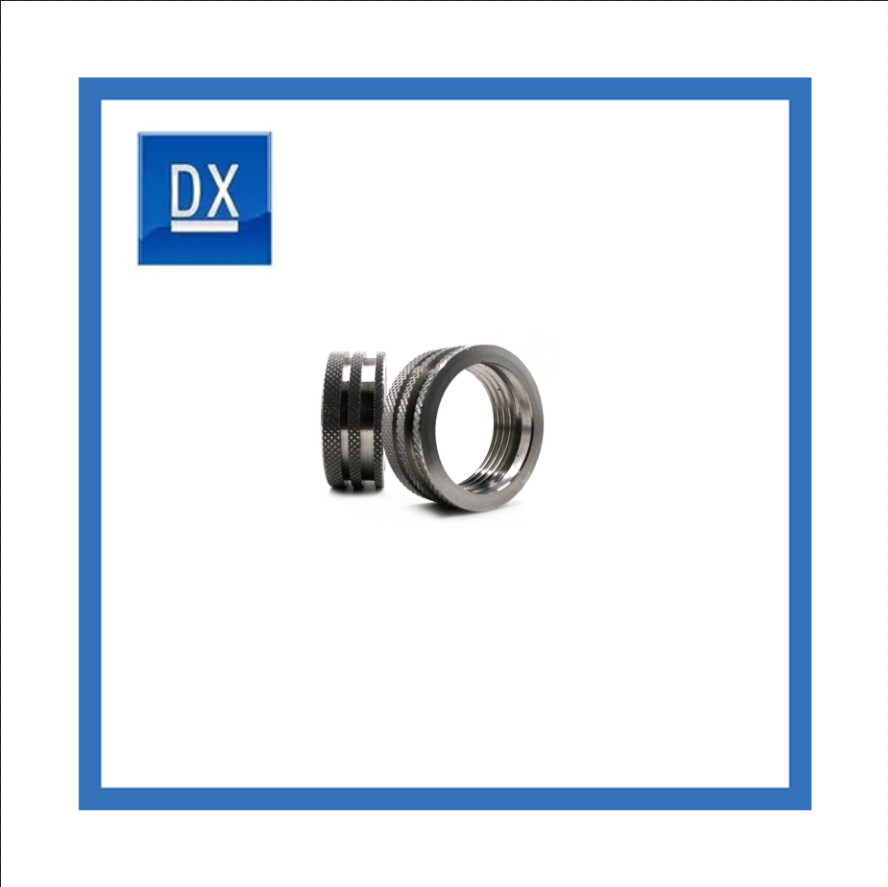

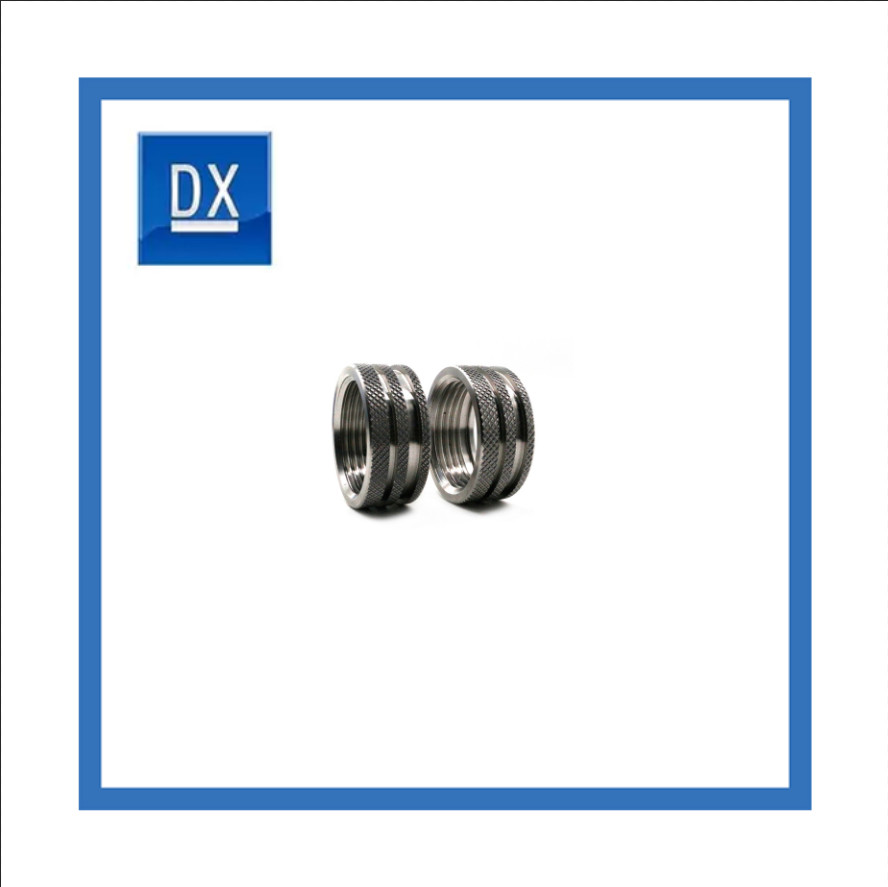

Stainless Steel Medical Equipment Drilling Sensor Positioning Piece

1,000pcs
MOQ
USD
Price
Stainless Steel Medical Equipment Drilling Sensor Positioning Piece
Features Gallery Product Description Request A Quote
Features
Specifications
Material: 316 Stainless Ateel
Length: Custom
Diameter: Custom
Tolerance: 0.01
Surface Roughness: Ra2.0
Machining Type: Drilling Machining Parts
OEM/ODM: Accept
Sample Time: 4-7days
Certificate: ISO9001
Production Time: 15-30days
High Light:

Drilling machining parts

,

Medical machining parts

,

Stainless steel drilling machining parts

Basic Infomation
Place of Origin: China
Payment & Shipping Terms
Packaging Details: Bubble bag+carton boxes
Delivery Time: 45days
Payment Terms: T/T
Supply Ability: 100,00,0pcs per month
Product Description

Stainless steel medical equipment drilling sensor positioning piece.


Description

Drilling is a basic method of hole processing. Drilling is often carried out on drilling machines and lathes, but can also be carried out on boring machines or milling machines. Commonly used drilling machines include bench drilling machines, vertical drilling machines and radial drilling machines.


Technological characteristics of drilling
(1) The two cutting edges of the twist drill are symmetrically distributed on both sides of the axis. When drilling, the radial resistance forces are balanced with each other, so it is not as easy to bend as a single-edged tool.
(2) When drilling, the cutting depth reaches half of the hole diameter, and the metal removal rate is high.
(3) The drilling process is semi-closed. The drill bit extends into the workpiece hole and occupies a large space. The chips are wide and often spiral. However, the size of the chip flute of the twist drill is limited, so chip removal is difficult, and the hole has been machined. The wall is often scratched due to the squeeze friction of the chips, which makes the surface roughness Ra value larger.
(4) When drilling, the cooling conditions are poor and the cutting temperature is high, therefore, the cutting speed is limited and the productivity is affected.
(5) Drilling is rough machining, and its machining economic accuracy grade is IT13~IT11, and its surface roughness is Ra50~12.5μm. It is generally used for processing of less demanding holes (such as bolt passage holes, lubricating oil passage holes, etc.) or pre-processing of high-precision holes.



CNC Machining Description
Product name Stainless steel medical equipment drilling sensor positioning piece
Material 316 Stainless Steel
Surface Treatment Polishing
Surface roughness 2.0Ra
Material standard ASTM
Tolerance 0.01
Usage Medical equipment
Service available OEM /ODM/Customized/Design
Process CNC Machining,Tin and CBN plating
Drawing Format 3D/CAD/Dwg/IGS/STP
Features High precision;High quality


Factory Display

Stainless Steel Medical Equipment Drilling Sensor Positioning Piece 0Stainless Steel Medical Equipment Drilling Sensor Positioning Piece 1

Plating Line

Stainless Steel Medical Equipment Drilling Sensor Positioning Piece 2

Test Equipment

Stainless Steel Medical Equipment Drilling Sensor Positioning Piece 3

Stainless Steel Medical Equipment Drilling Sensor Positioning Piece 4

Stainless Steel Medical Equipment Drilling Sensor Positioning Piece 5

Q1: Where can I get product & price information?
A: Send us an inquiry e-mail, we will contact you as we receive your mail.

Q2: How long can I get the sample?
A: Depends on your specific items, within 3-7 days is required generally.

Q3: What's kinds of information you need for a quote?
A: Kindly please provide the product drawing in PDF, and will be better you can provide in STEP or IGS


Q4. What kind of payment terms do you accept?
A:T/T,L/C,Escrow,paypal,western union,moneygram.

Q5: Is it possible to know how is my product going on without visiting our company?
A:We will offer a detailed products schedule and send weekly reports with digital pictures and vedios which show the machining progress.
