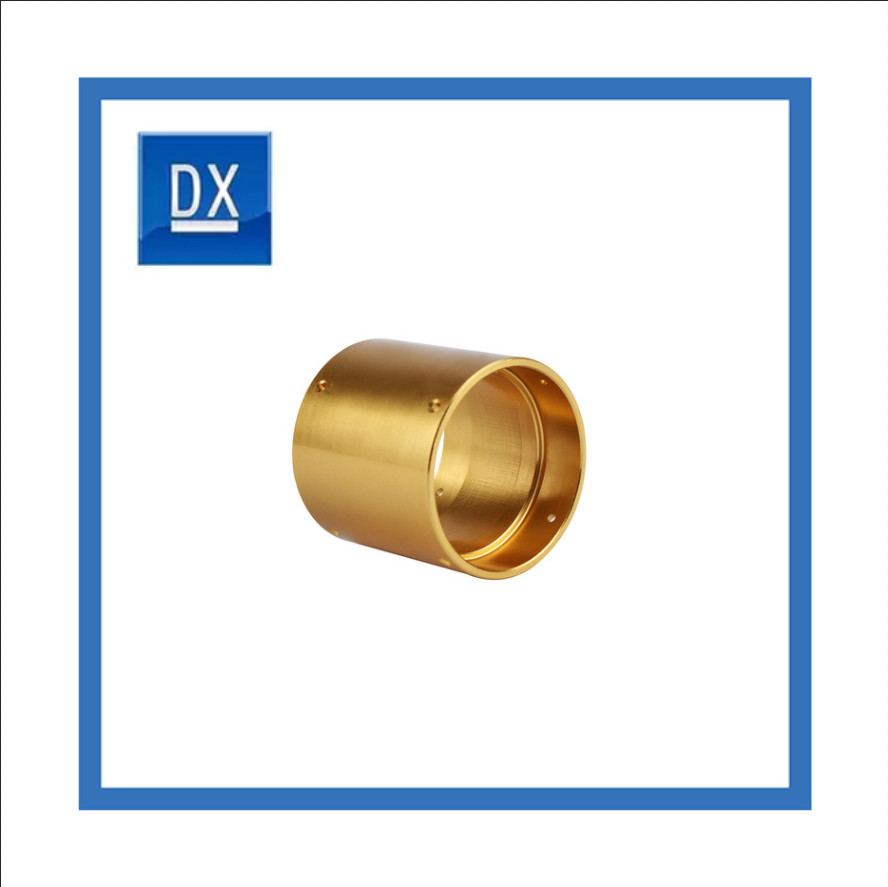

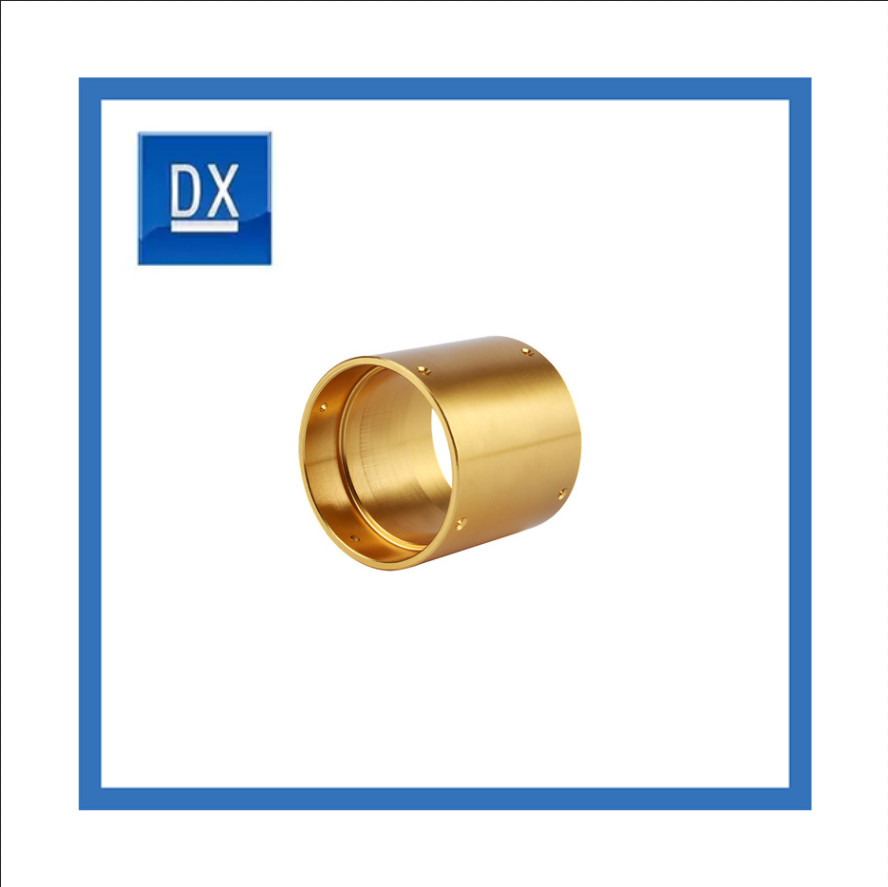

Copper Vertical Milling With Precision Hole Polishing Hollow Bushings

35,00,0pcs
MOQ
USD
Price
Copper Vertical Milling With Precision Hole Polishing Hollow Bushings
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Red Copper
Surface Finish: Polishing
Feature: Custom
Surface Roughness: Ra0.5
Tolerance: 0.02
Wall Thickness: Custom
Certificate: ISO9001:2008
Service: Customized OEM/ODM
High Light:

Copper hollow bushings

,

Vertical milling copper bushings

,

Copper bushing with precision holes

Basic Infomation
Place of Origin: China
Payment & Shipping Terms
Packaging Details: Poly bag+Carton with pallet
Delivery Time: 45days
Payment Terms: T/T
Supply Ability: 400,00,00pcs per month
Product Description



Copper vertical milling with precision hole polishing hollow bushings.



Description

The bushing is a matching part used outside the mechanical parts to achieve the functions of sealing, wear protection, etc. It refers to the ring sleeve that functions as a gasket. In the field of valve applications, the bushing is inside the valve cover, and corrosion-resistant materials such as polytetrafluoroethylene or graphite are generally used for sealing.



Milling is a machining method in which a milling cutter is used as a tool to machine the surface of an object.
Milling refers to the use of rotating multi-edge tools to cut workpieces, and is a highly efficient processing method. When working, the tool rotates (for the main movement), the workpiece moves (for the feed movement), and the workpiece can also be fixed, but the rotating tool must also move (to complete the main movement and the feed movement at the same time).



Feature
①Each tooth of the milling cutter periodically participates in intermittent cutting.
②The cutting thickness of each tooth changes during the cutting process.
③The feed per tooth αf (mm/tooth) indicates the relative displacement of the workpiece within the time that the milling cutter rotates one tooth.





CNC Machining Description
Product name Copper vertical milling with precision hole polishing hollow bushings
Material Red copper
Surface Finish Polishing
Surface Roughness Ra0.5
Tolerance ±0.02
Type Hollow bushing
Packing Poly bag+Carton with pallet
Drawing Format DWG/DXF/IGS/STEP/X-T and PDF
Certificate ISO9001
Processing Technic CNC machining



Factory Display



Copper Vertical Milling With Precision Hole Polishing Hollow Bushings 0



Copper Vertical Milling With Precision Hole Polishing Hollow Bushings 1

Packing way



Copper Vertical Milling With Precision Hole Polishing Hollow Bushings 2

Copper Vertical Milling With Precision Hole Polishing Hollow Bushings 3



Package



Copper Vertical Milling With Precision Hole Polishing Hollow Bushings 4

Plating line



Copper Vertical Milling With Precision Hole Polishing Hollow Bushings 5



Heat Treatment



Copper Vertical Milling With Precision Hole Polishing Hollow Bushings 6



1Q:What information does the quotation need?
A:Pls. offer your drawings and/or samples, quantity and packing’s requirements.
Drawings in PDF, IGS, DWG, STEP, MAX are suitable to us.


2Q:What’s lead time for samples and products?
A:Lead time for samples: 30-70days depend on the structure of the part and other requirements on heat treatment, machining, surface
treatment and so on.
Mass production lead time: 35-70days depend on products’ characteristics and quantity.


3Q:What is the requirement on payment?
Tooling Cost:50% deposit,50% after samples passed.
Payment for the Order:50% deposit,50% to be paid before shipment.



4Q:What kind of payment do you accept?
A: Trade assurance, T/T, L/C, Weston Union are all accepted.

5Q:What is normal lead time?
A: Average 15-35 days for tooling, bulk orders should be depends on quantity.
