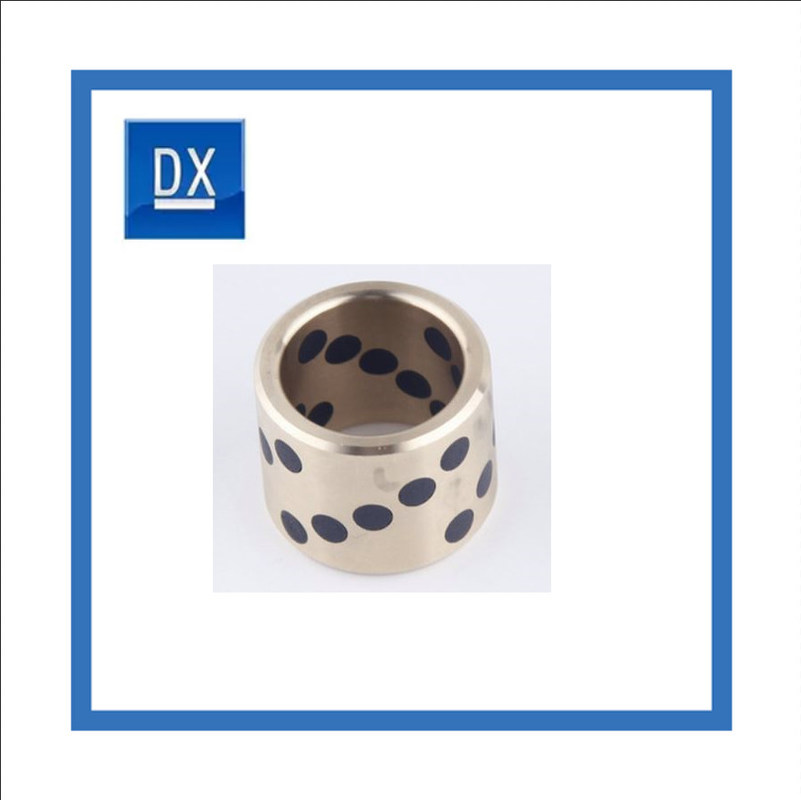

Automotive Oilless Self Lubricating Bronze Bushings

Automotive Oilless Self Lubricating Bronze Bushings
Features Gallery Product Description Request A Quote
Material: Bronze
ID: 40(mm)
OD: 50(mm)
Height: 60(mm)
Weight: 0,1(kg)
Oil Lubrication Method: Self Lubrication
Bearing Mechanism: Boundary Friction
Load Direction: Radial Thrust
High Light:

60mm self lubricating bronze bushings


Oilless self lubricating bronze bushings


Automotive bronze bushing sleeve

Basic Infomation
Place of Origin: China
Payment & Shipping Terms
Packaging Details: Bubble bag and carton
Delivery Time: 45days
Payment Terms: T/T
Supply Ability: 400,00,00pcs per month
Product Description

Bronze Oilless sleeve bushing self lubricating for Automotive.



The shaft sleeve plays the role of sliding bearing in stamping equipment.
It can bear large axial load.


The Characteristics Of Boundary Lubrication Are As Follows

(1) The direct contact between friction surfaces carries most of the load.

(2) The lubricant reacts with the surface.

(3) The products of tribochemical reaction play an important role in the lubrication effect.

(4) The viscosity of base oil has little effect on friction and wear.

(5) Generally, it occurs in low speed and high load conditions, such as the working environment of bearing, gear, cam worm and active cold ring. Under the condition of boundary lubrication, the four convex parts between friction surfaces collide. According to the different load and material properties, local elastic deformation and plastic deformation will occur on the surface, and fracture will occur under harsh conditions. With the release of energy such as mechanical energy and heat, the instantaneous temperature of the contact point is very high, and the new surface has high surface energy and reactivity. These factors will lead to chemical reactions between the lubricant and the surface metal, such as oxidation reaction (oxidation of surface metal and lubricant), decomposition reaction of lubricant, surface catalytic reaction Polymerization and formation of organometallic compounds. Nakaama et al. Observed that there were broken chemical bonds, exoelectrons and charged particles in the friction process, which promoted the occurrence of tribochemical reaction.


CNC Machining Description
Product name Bushing of punching equipment
Material Brass
Oil lubrication method self lubrication
Bearing mechanism boundary friction
Height 60(mm)
ID 40(mm)
OD 50(mm)
Weight 0.1kg
Quality control 0 defects, 100% inspection before packing
Features High precision, high quality


Factory Display


Automotive Oilless Self Lubricating Bronze Bushings 0


Automotive Oilless Self Lubricating Bronze Bushings 1

Packing way


Automotive Oilless Self Lubricating Bronze Bushings 2

Automotive Oilless Self Lubricating Bronze Bushings 3


1.Q:What information does the quotation need?
A:Pls. offer your drawings and/or samples, quantity and packing’s requirements.
Drawings in PDF, IGS, DWG, STEP, MAX are suitable to us.

2.Q:What’s lead time for samples and products?
A:Lead time for samples: 30-70days depend on the structure of the part and other requirements on heat treatment, machining, surface
treatment and so on.
Mass production lead time: 35-70days depend on products’ characteristics and quantity.

3.Q:What is the requirement on payment?
Tooling Cost:50% deposit,50% after samples passed.
Payment for the Order:50% deposit,50% to be paid before shipment.
